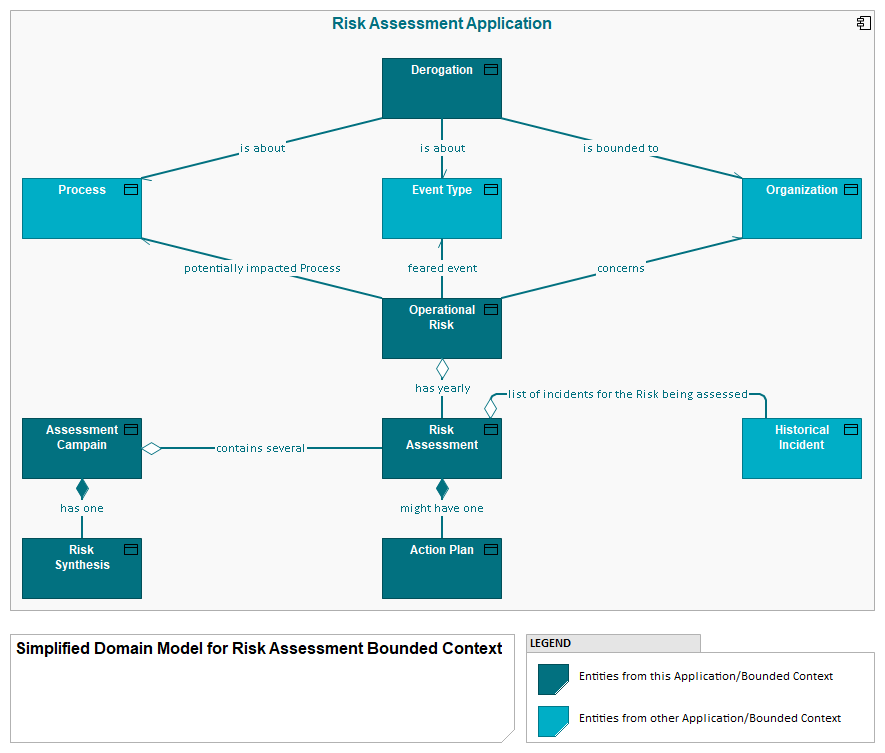

Risk Assessment Application - Simplified Domain Model

Risk Assessment Application - Simplified Domain Model ()


Risk Assessment Application
Historical Incident
Event Type
Process
Operational Risk
Risk Assessment
Derogation
Organization
Assessment Campain
Risk Synthesis
Action Plan
LEGEND


	Risk Assessment Application	Historical Incident
	Risk Assessment Application	Event Type
	Risk Assessment Application	Process
	Risk Assessment Application	Operational Risk
	Risk Assessment Application	Risk Assessment
	Risk Assessment Application	Derogation
	Risk Assessment Application	Organization
	Risk Assessment Application	Assessment Campain
	Risk Assessment Application	Risk Synthesis
	Risk Assessment Application	Action Plan
feared event	Operational Risk	Event Type
has yearly	Operational Risk	Risk Assessment
potentially impacted Process	Operational Risk	Process
concerns	Operational Risk	Organization
list of incidents for the Risk being assessed	Risk Assessment	Historical Incident
might have one	Risk Assessment	Action Plan
is about	Derogation	Process
is about	Derogation	Event Type
is bounded to	Derogation	Organization
contains several	Assessment Campain	Risk Assessment
has one	Assessment Campain	Risk Synthesis
